Trav-L-Vac 300 Trailer

Trav-L-Vac 300 Trailer

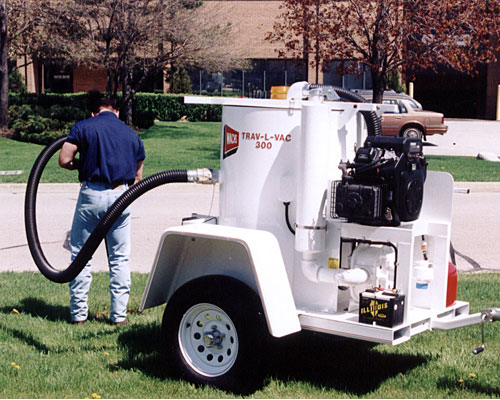

The Trav-L-Vac 300 trailer is a powerful gasoline driven vacuum system that is ideal for tough jobs in tight quarters. Featuring a 90 (241L) gallon spoils tank, manual dump gate and 2” drain inlet to clean up water utility valve boxes quickly and easily.

  • Kohler gasoline engine with electric start and tach/hour meter or HD hydraulic drive requiring 15 GPM @ 2000 PSI (57 LPM @ 138 BAR)
  • 345 CFM @ 14 HG heavy duty positive displacement blower with discharge silencer
  • 3 stage filtration system that is washable and reusable
  • 2" (50.8mm) ball coupler or pintle hook
  • High liquid level shut off switch
  • Hour meter and tachometer
  • All steel welded platform
  • Axle and independent torsion suspension
  • 14" radial tires on Dexter Mod wheels with chrome center cap and lug nuts
Creates a lightweight, portable vac system with a compact footprint 60" (152cm) long x 40" (102cm) wide, and easily towed at only 950 lbs (431 kg). Ships without fluids, requires user installation.
59-401-01 ball
59-401-02 pintle

Downloads

Manual Datasheet
