Standard - VMT, Diesel

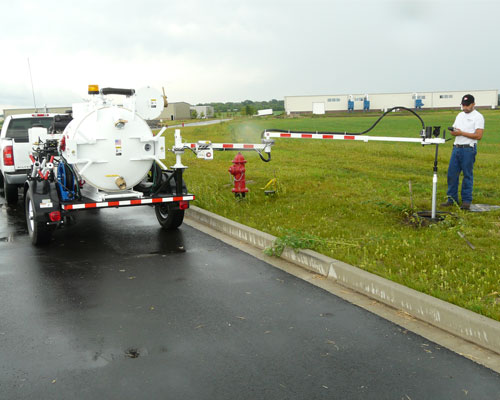

VMT-2 Valve Maintenance Trailer

Single turner valve maintenance trailer; includes:

  • Wachs 750 Ft/lb ERV-750 Extended Reach Valve operator
  • Ruggedized  HC-100 with GPS controller/datalogger
  • A Tier 4F compliant, Kubota 1.1L, I-3 4-stroke, liquid cooled, IDI diesel engine provides ample power for all contained functions, including an auxiliary HTMA Class II circuit.
  • A positive displacement blower provides 500 CFM-11in Hg vacuum
  • Spoils containment provided by a 250 gallon tank with power hydraulic dump (rear discharge) and latching rear door.
  • Also driven from the common power train is a 2.5 gpm @ 3000 psi pressure washer system
  • 7 gallon anti-freeze tank
  • 95 gallon water tank.
  • 2-1/2in, 1-1/4in & 7/8in suction wands
  • Short wash-down gun
  • Long wash-down gun
